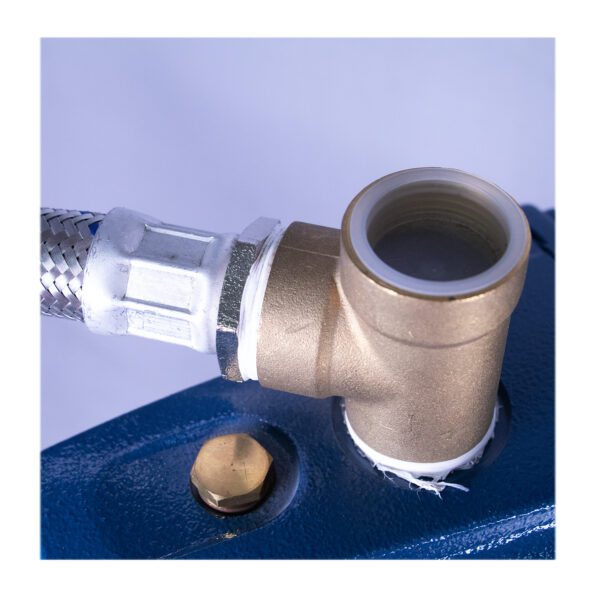

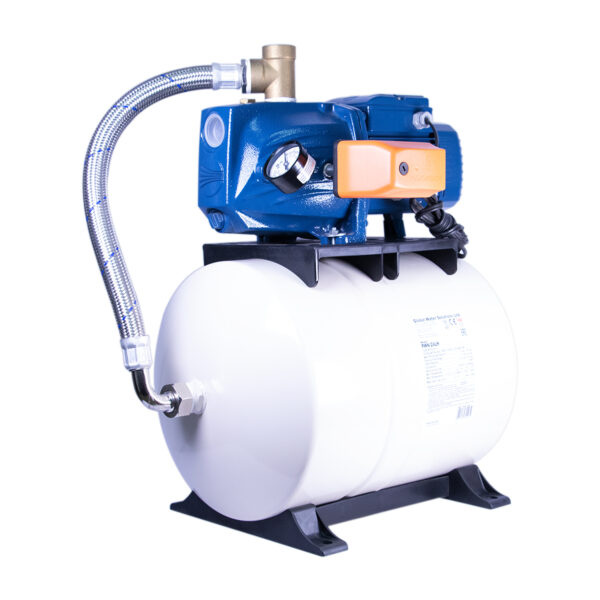

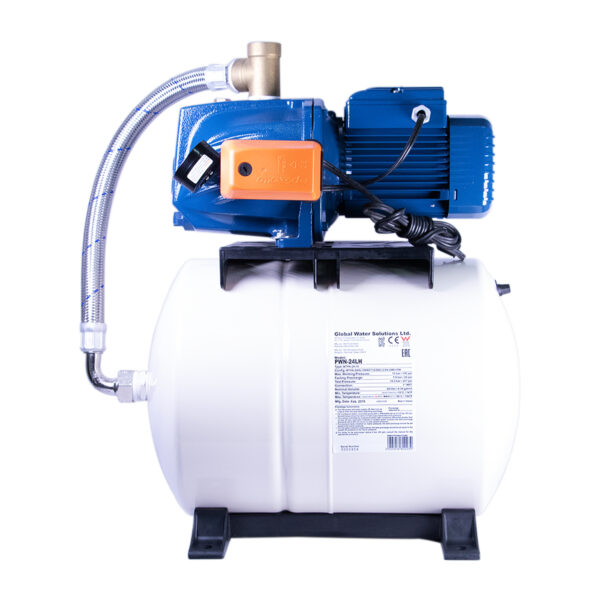

Pedrollo Water Pump JSWm A1
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming JSW pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in
combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
Liquid type: Clean Water
Uses: domestic
Applications: water supply systems, fire-fighting sets, washing systems, pressure systems, irrigation pumps, liquids transfer
typology: surface
Family: self-priming
Performance Range:
- Flow rate up to 60 l/min (3,6 m³/h)
- Head up to 48 m
Application Limit:
- Temperature of the liquid to +40 °C
- Ambient Temperature da -10 °C to +40 °C
- Manometric suction lift up to 9 m (HS)
- Max. working pressure 6 bar
- Continuous service S1
PWN-24LH

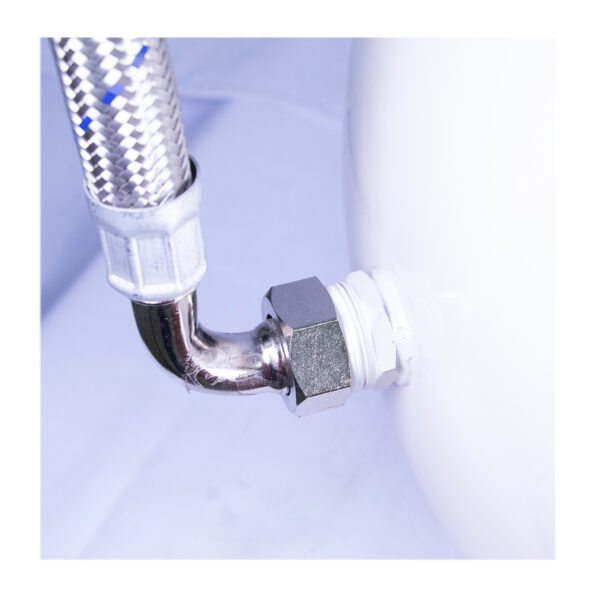

PressureWave Tank – 24 liter / 6.34 gallon horizontal – 1″ NPT connection – 1.9 bar / 28 psi – Almond – MTPA-24-10.
PressureWave™ Series
- Capacity: 2 – 150 liter / 0.5 – 40 gallon
- Maximum working pressure: 10 bar / 150 psi
- Factory pre-charge: 1.9 bar / 28 psi
- Maximum operating temperature: 90° C / 194° F
PressureWave™ tanks are superior quality, versatile pressure vessels suitable for a range of applications including:
- Booster systems
- Well systems
- Irrigation systems
- Thermal expansion
- Hydronic heating expansion
- Hydraulic hammer arresting
- Clean water backwash for Ultra-Filtration systems
PressureWave™ tanks undergo rigorous testing and inspection throughout the production process to ensure optimum structural integrity and to ensure they meet the highest standard in terms of performance and material certifications.
PressureWave™ tanks are the number one selling tanks in the industry and are the top choice for the world’s leading pump manufacturers and distributors.
Features & Benefits
- Maintenance Free
- Diaphragm design
- Patented stainless steel water connection
- Virgin polypropylene liner
- Two-part polyurethane, epoxy primed paint finish
- Leak-free, O-ring sealed air valve cap
- Inline models equipped with reinforced connection plate (RCP)

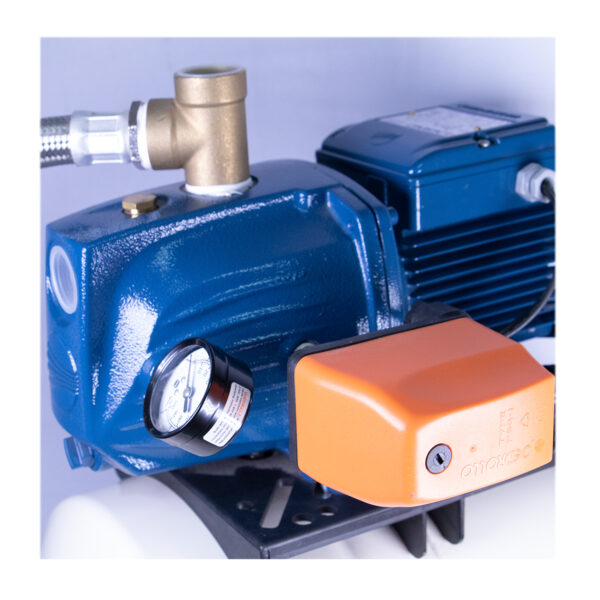

Pedrollo PSG-1 Water Pressure Switch
INSTALLATION & USE
The PSG1 Water pressure switch automatically starts and stops the electric water pump according to the set pressures. Commonly used in agricultural, irrigation and borehole applications
Adjustment Range 1-5 Bar
FEATURES
Pressure switches for use with water in autoclave systems
Automatically starts and stops the electric water pump according to the set pressures
Electric Contacts: normally closed and made of brass alloy with Ag-Ni surfacing
NBR rubber membrane with textile insert (food grade)
1/4″ F hydraulic connection made of galvanized steel
Standard protection degree IP 44
Max ambient temperature 55°C
Tear resistant cable clamps
TECHNICAL DETAILS:
Pressure Range: 1-5 Bar
Factory Pre-Set Setting: 1.4-2.8 Bar
Minimum Difference: 0.6 Bar
Maximum Difference: 2.3 Bar
Rated Current: 16A (10)A
Rated Voltage: 250V
