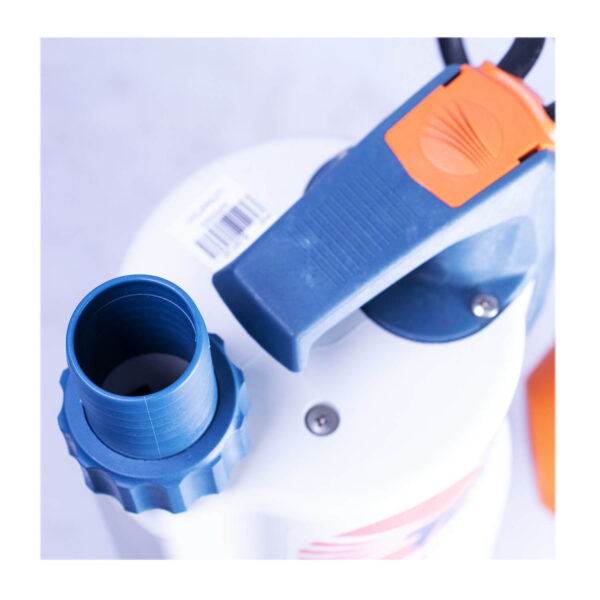

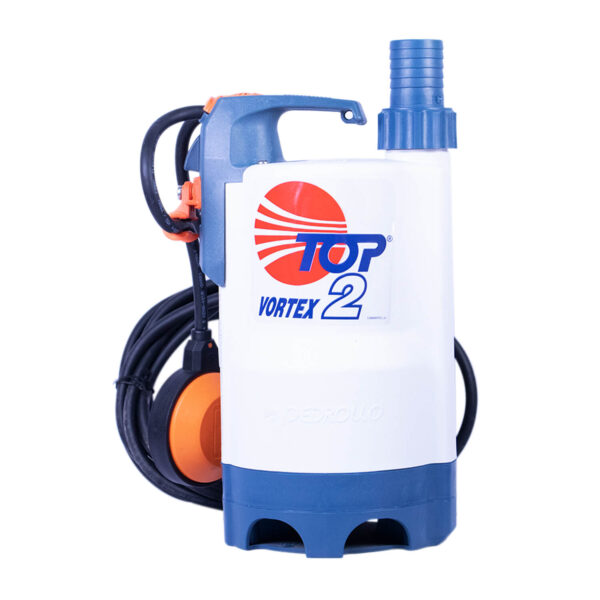

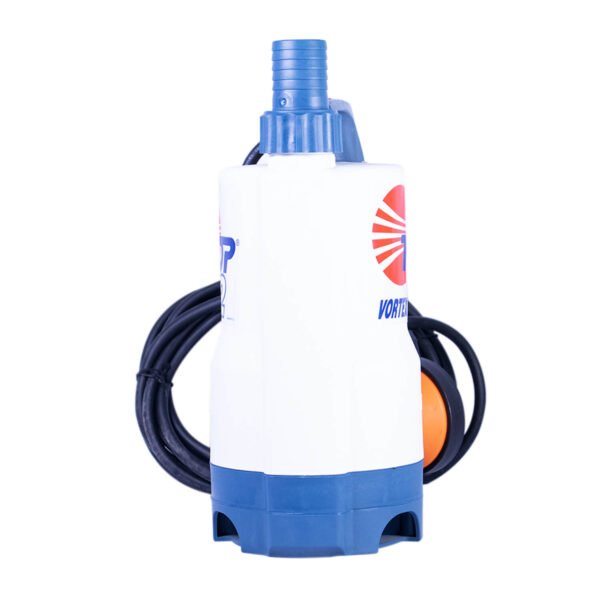

The Pedrollo Submersible Pump TOP-VORTEX pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in applications such as clearing dirty water, emptying tanks, discharging domestic wastewater, and emptying collection traps containing suspended solids up to a maximum of Ø 20 mm
Liquid type:Â Dirty water
Uses:Â domestic
Applications:Â drainage, dirty water – slightly solid particles, emptying tanks
typology:Â submersible
Family:Â submersible pumps
Performance Range:
- Flow rate up to 180 l/min (10,8 m³/h)
- Head up to 8,50 m
Application Limit:
- Temperature of the liquid to +40 °C
• 3 m maximum immersion depth
(with a sufficiently long power cable)
• Maximum liquid temperature +40 °C
(Maximum liquid temperature +90 °C for a maximum of 3 minutes
intermittent service)
• Passage of suspended solids up to Ø 25 mm
• Suction down to 25 mm
