Name: Laverne Tile 0.40mm x 4' (per meter)
Brand: Union Galvasteel
SKU: UNRF402
Price: 295.40 PHP
Availability: InStock

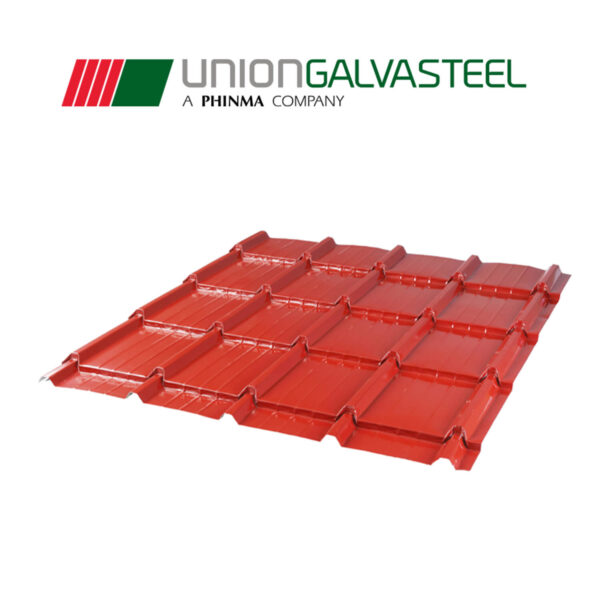

Laverne Tile 0.40mm x 4′ (per meter)

Substrate/ Reference Standards	Hot-dip Zinc-Coated Steel Coils PNS 1990:2004; JIS G 3302; ASTM A 653; ISO 3575 Hot-dip 55% Aluminum-Zinc Coated Steel Coils PNS 1993:2004; JIS G 3321; ASTM A 792; ISO 9364
Nominal Thickness	0.30 mm to 0.60 mm
Feed Width	915 mm and 1220 mm
Effective Coverage	780 and 1040 mm
Paint Coating System	Oven cured high performance quality epoxy primer and polyester top coat and back coat paints.
Also Available upon request	Silicone Modified Polyester (SMP) PolyvinylideneDiflouride (PVDF)
Paint Coating Thickness	For Regular Colors : Topcoat : 12 – 20 microns Backcoat : 4 – 8 microns For Multi Colors and Woodgrain : Topcoat : 22 – 28 microns Backcoat : 4 – 8 microns
Available Colors	Red, Green, Beige, Blue, Orange, White, Brown, Multicolor and Woodgrain Variants Special Colors also available upon request
Module Distance	Standard : 300 mm Variable : 260 mm minimum
Purlin Spacing	Equal to Module Distance
Depth of Step in Tile	Standard : 10 mm – 20 mm Variable : 8 mm – 25 mm upon request
Length	Transportable length up to 20 meters Onsite Rollforming for longer panels

SKU: UNRF402 Categories: Building Materials, Roofing

Substrate/ Reference Standards	Hot-dip Zinc-Coated Steel Coils PNS 1990:2004; JIS G 3302; ASTM A 653; ISO 3575 Hot-dip 55% Aluminum-Zinc Coated Steel Coils PNS 1993:2004; JIS G 3321; ASTM A 792; ISO 9364
Nominal Thickness	0.30 mm to 0.60 mm
Feed Width	915 mm and 1220 mm
Effective Coverage	780 and 1040 mm
Paint Coating System	Oven cured high performance quality epoxy primer and polyester top coat and back coat paints.
Also Available upon request	Silicone Modified Polyester (SMP) PolyvinylideneDiflouride (PVDF)
Paint Coating Thickness	For Regular Colors : Topcoat : 12 – 20 microns Backcoat : 4 – 8 microns For Multi Colors and Woodgrain : Topcoat : 22 – 28 microns Backcoat : 4 – 8 microns
Available Colors	Red, Green, Beige, Blue, Orange, White, Brown, Multicolor and Woodgrain Variants Special Colors also available upon request
Module Distance	Standard : 300 mm Variable : 260 mm minimum
Purlin Spacing	Equal to Module Distance
Depth of Step in Tile	Standard : 10 mm – 20 mm Variable : 8 mm – 25 mm upon request
Length	Transportable length up to 20 meters Onsite Rollforming for longer panels
